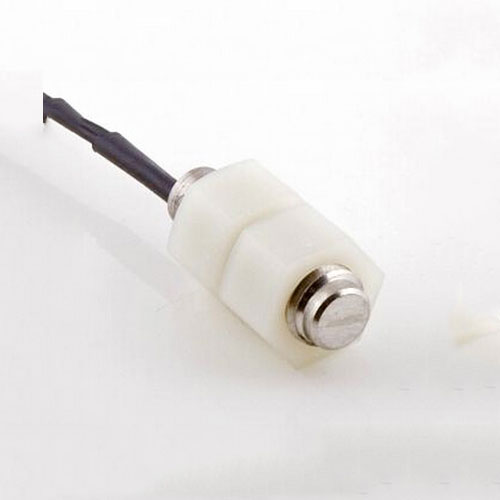

PS831
>

PS831

Features
  • Adjustable operated PM83 Magnet
  • Repeatability of operation
  • Shunt or direct magnet operation
  • Multiple Mode of Operation
  • Totally encapsulated
Comments
  • Threaded Barrel Mounted
  • Normally Open
  • Stainless Steel Material Housing
  • Overall length 31.8mm Threaded Area
  • fitted with 2 lock nuts
Applications
  • Door Interlocks
  • Hook Switches
  • Security Systems
  • Safety Interlocks
  • Position Indication


Material
　　Housing Material Stainless Steel
　　Contact Material Ruthenium
　　Operating Temperature °C -30 to 130
　　Housing Colour Stainless Steel

Mechanical Specifications
　　Shock 50g for 11ms duration
　　Vibration 35g up to 500Hz
　　IP IP65

Switching
　　Switch Action (Reed Switch) SPST
　　Max Switching Voltage VDC 200
　　Max Switching Voltage VAC 250
　　Max Switching Current Amps 1
　　Max Switching Load Watt 30
　　Operate Mode Direct Axis, Parallel Axis
　　Contact Form A

Cable
　　Cable Length 2 x 0.5M
　　Connection Type Stripped Cables
　　Cable Type 22AWG 16/0.2mm PVC insulated
　　Cable Colour Black/Black

Mounting
　　Thread M10 x 1.5
　　Mounting Any Axis

Technical Drawing
