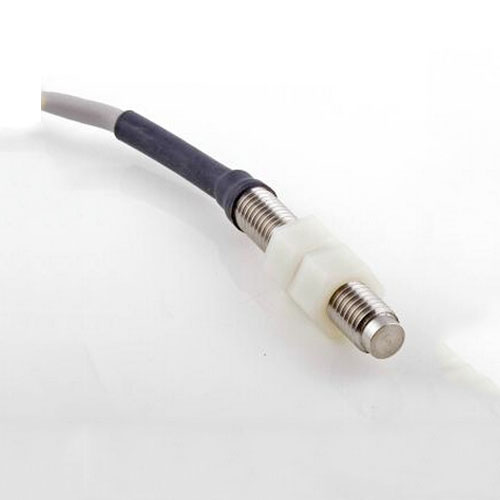

PS801
| Features
Comments
Applications
|  |
| Material | |
|---|---|
| Housing Material | Stainless Steel |
| Contact Material | Ruthenium |
| Operating Temperature °C | -30 to 120 |
| Housing Colour | Stainless Steel |
| Mechanical Specifications | |
|---|---|
| Shock | 50g for 11ms duration |
| Vibration | 35g up to 500Hz |
| IP | IP67 |
| Switching | |
|---|---|
| Switch Action (Reed Switch) | PST |
| Max Switching Voltage VDC | 200 |
| Max Switching Voltage VAC | 250 |
| Max Switching Current Amps | 1 |
| Max Switching Load Watt | 40 |
| Operate Mode | Direct Axis, Parallel Axis |
| Contact Form | A |
| Cable | |
|---|---|
| Cable Length | 2 x 0.5M |
| Connection Type | Stripped Cables |
| Cable Type | 16/0.2mm PVC Double insulated |
| Cable Colour | Grey outer Blue/Brown inner |
| Mounting | |
|---|---|
| Thread | M10 x 1.5 |
| Mounting | Any Axis |
| Technical Drawing |
|---|
 |
