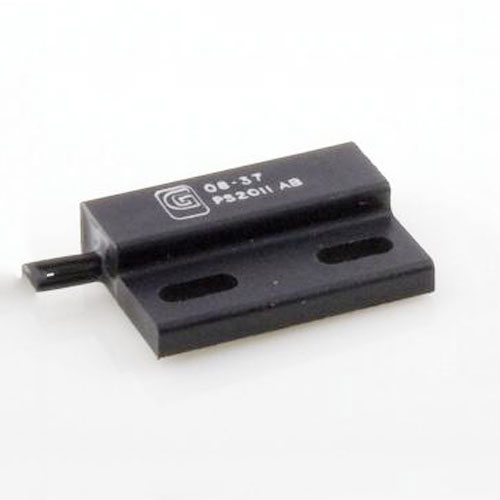

POSITION SENSORS PS2011AB
>

POSITION SENSORS PS2011AB

Features
  • UL listed model
  • Adjustable with XY axis using appropriate magnets
  • Cable wiring from the Right of the package
  • Repeatability of operation
  • Shunt or direct magnet operation
Comments
  • Robust Nylon Housing
  • Normally Open
  • Surface Mounted by fixing screws
  • Fully encapsulated
  • Matching Magnet PM101 or PM102
Applications
  • Door Interlocks
  • Hook Switches
  • Security Systems
  • Safety Interlocks
  • Position Indication


Material
Housing Material Glass Filled Nylon 6.6
Contact Material Ruthenium
Operating Temperature °C -30 to 105
Housing Colour Black

Mechanical Specifications
Shock 50g for 11ms duration
Vibration 35g up to 500Hz
IP IP65

Switching
Switch Action (Reed Switch) SPST
Max Switching Voltage VDC 200
Max Switching Voltage VAC 250
Max Switching Current Amps 1
Max Switching Load Watt 30
Operate Mode Direct Axis, Parallel Axis
Contact Form A

Cable
Cable Length 2 x 0.5M
Connection Type Stripped Cables
Cable Type UL1569 24AWG, 7/32mm PVC insulated
Cable Colour Black/Black

Mounting
Fitting Surface
Mounting Any Axis

Technical Drawing
