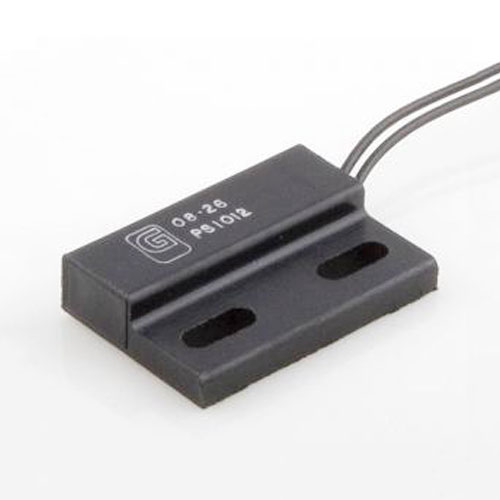

POSITION SENSORS PS1012
>

POSITION SENSORS PS1012

Features
  • Adjustable with XY axis using appropriate magnets
  • Cable wiring from the Left of the package
  • Repeatability of operation
  • Shunt or direct magnet operation
  • Multiple Mode of Operation
Comments
  • Robust Nylon Housing
  • Normally Open
  • Surface Mounted by fixing screws
  • Fully encapsulated
  • Matching Magnet PM101 or PM102
Applications
  • Door Interlocks
  • Hook Switches
  • Security Systems
  • Safety Interlocks
  • Position Indication


Material
　　Housing Material Glass Filled Nylon 6.6
　　Contact Material Ruthenium
　　Operating Temperature °C -30 to 105
　　Housing Colour Black

Mechanical Specifications
　　Shock 50g for 11ms duration
　　Vibration 35g up to 500Hz
　　IP IP65

Switching
　　Switch Action (Reed Switch) SPST
　　Max Switching Voltage VDC 200
　　Max Switching Voltage VAC 250
　　Max Switching Current Amps 1
　　Max Switching Load Watt 30
　　Operate Mode Direct Axis, Parallel Axis
　　Contact Form A

Cable
　　Cable Length 2 x 0.5M
　　Connection Type Stripped Cables
　　Cable Type 24AWG, 7/0.2mm PVC insulated
　　Cable Colour Black/Black

Mounting
　　Fitting Surface
　　Mounting Any Axis

Technical Drawing
