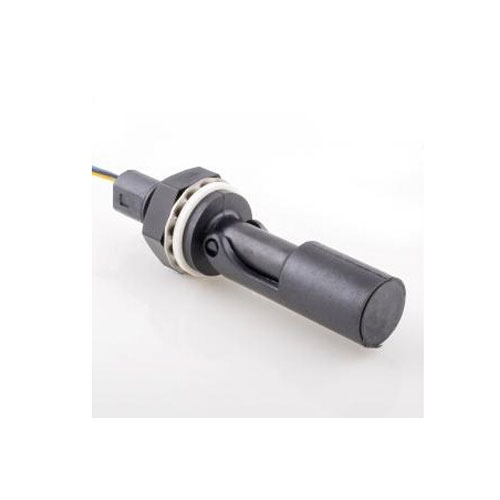

LS504-11
>

LS504-11

Features
  • High or low level sensing
  • Internal fitting
  • Reed Switch reliability
  • Silicone sealing washer
  • Easy installation
Comments
  • High or low level sensing, single pole double throw.
  • Normally open or normally closed by rotating through 180
  • Suitable for a wide range of liquids
  • Interface option available
  • PPS Material
Applications
  • Coolant level indication
  • Water high or low Level
  • Boiler heating element protection
  • Drinking water level
  • Boiling Water


Material
　　Housing Material Glass Filled PPS
　　Float Material Glass Filled PPS
　　Contact Material Ruthenium
　　Float SG
0.7
　　Operating Temperature °C -30 to 110
　　Medium Boiling Water, Drinking Water (Potable Water) Water
　　Housing Colour Black
　　Float Colour Black

Mechanical Specifications
　　Shock 50g for 11mS duration
　　Vibration 35g up to 500Hz
　Maximum Pressure 4.7 Bar
　　IP IP65

Switching
　　Switch Action (Reed Switch) SPDT
　　Max Switching Voltage VDC 175
　　Max Switching Voltage VAC 125
　　Max Switching Current Amps 0.4A DC/0.28A AC
　　Max Switching Load Watt 5
　　Operate Mode N/C with float horizontal
　　Contact Form C

Cable
　　Cable Length 3 x 0.5M single insulated
　　Connection Type Stripped Cables
　　Cable Type 24AWG, 7/0.2mm PVC insulated
　　Cable Colour Yellow/Blue/Black

Mounting
　　Thread M16
　　Fitting Internal
　　Mounting Horizontal

Technical Drawing
