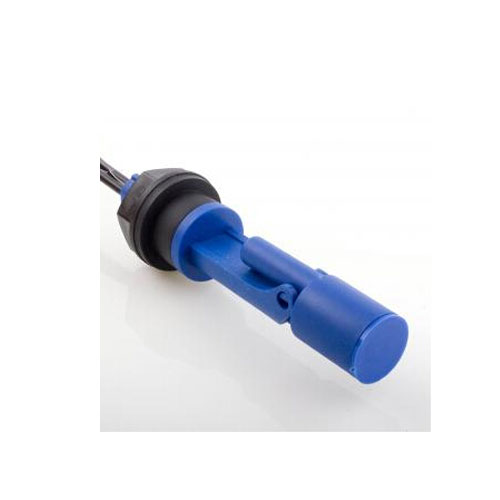

LDS309-21
>

LDS309-21

Features
  • High or low level sensing
  • External fitting
  • Reed Switch reliability
  • Nitrile sealing grommet
  • Easy installation
Comments
  • Close Differential between open and closed
  • Normally open or normally closed by rotating through 180
  • Suitable for a wide range of liquids
  • Interface option available
  • Nylon 6.6 Material
Applications
  • Chemical high or low level
  • Diesel Fuel
  • Fuel low level
  • Alcohols
  • Low Oil Detection


Material
　　Housing Material Glass Filled Nylon 6.6
　　Float Material Glass Filled Nylon 6.6
　　Contact Material Ruthenium
　　Float SG
0.85
　　Operating Temperature °C -30 to 110
　　Medium Fuels, Oils, Alcohols
　　Housing Colour Blue
　　Float Colour Blue

Mechanical Specifications
　　Shock 50g for 11mS duration
　　Vibration 35g up to 500Hz
　　Maximum Pressure 4.7 Bar
　　IP IP65

Switching
　　Switch Action (Reed Switch) SPST
　　Max Switching Voltage VDC 200
　　Max Switching Voltage VAC 250
　　Max Switching Current Amps 1
　　Max Switching Load Watt 70
　　Operate Mode N/C with float horizontal
　　Contact Form A

Cable
　　Cable Length 2 x 0.5M single insulated
　　Connection Type Stripped Cables
　　Cable Type 18AWG, 32/0.2mm PVC insulated
　　Cable Colour Black/Black

Mounting
　　Thread M16
　　Fitting External
　　Mounting Horizontal

Technical Drawing
